WHAT IS A RAM PUMP?
The hydraulic ram pump is a reliable, old-time water pump that works just as well
today as ever. Ongoing research indicates the Great Pyramid
may actually have been a gigantic ram pump..built to pump drinking water to public water
fountains in the cities above the Nile flood plain. (Pyramid Pump)
Often called a water ram, one of these simple devices can
pump water from a flowing source of water (spring, creek, river, etc.) to any point
above the source, and this without any power requirement except the force of
water moving downhill contained inside a 'drive pipe'.
This rugged and dependable
device is typically installed today at remote home sites and cabins that are off the
power grid and would otherwise be without a water supply. Sometimes a ram is used as a
backup water system, or for watering livestock, gardens, decorative lily ponds, water
wheels or fountains. Simply because a ram uses no power opens up a world of
possibilities for using water that would otherwise flow on downstream - wasted.
is really required is the surface water source. The water has to be moving...not much,
but some. The creek need not be large either -
4 gallons per minute is the minimum.

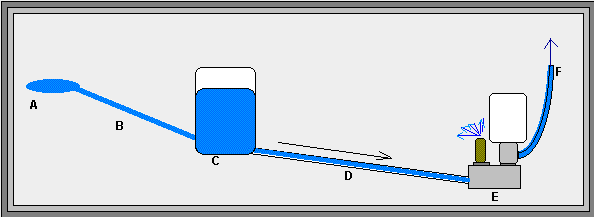

TYPICAL RAM PUMP SETUP
A) Water source; can be a river, stream, spring, or pond.
pipe. Goes from the source to the collection barrel downstream (below the source).
(C) Collection barrel or intake barrel. The water is collected here. Water level
stays at the level of the source.
(D) Drive pipe. About 100 ft. long; brings the
water to the pump and provides the power to the pump, somewhat like a battering ram.
Probably the least understood and most important part of the ram pump system.
Typically black plastic pipe, 1" to 2" dia., generally matched to the size of the clack
valve on the pump.
(E) Ram Pump. Starts and stops the movement of the water column
in the drive pipe through the clack valve (gold colored). Also redirects a portion of
the water (10%-15%) to the pressure tank through the internal check valve or one-way
valve. This portion leaves the pump and rises to the end use area through the...
(F) Delivery pipe which goes to the storage tank, garden, house...wherever the
water is needed. Typically of 1/2" or 3/4" black plastic pipe.

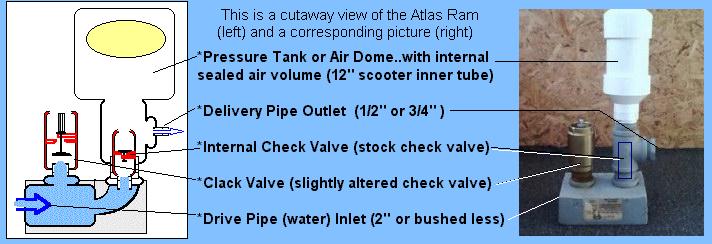

ATLAS RAM PUMP CUTAWAY

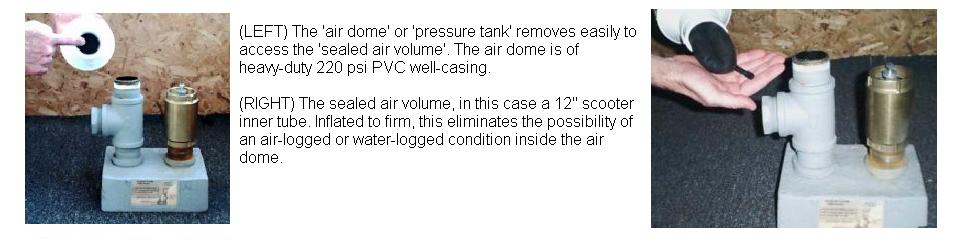

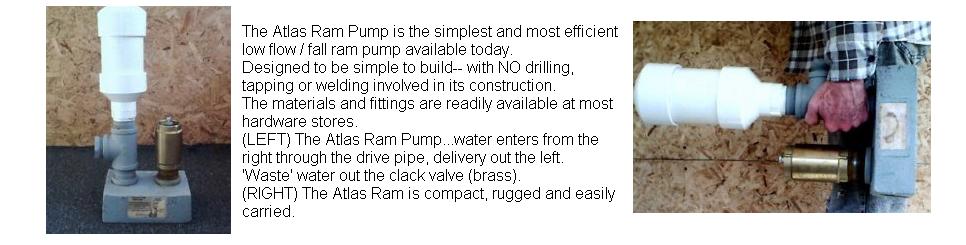

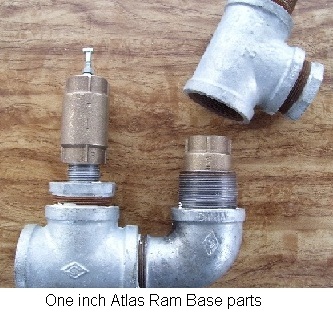

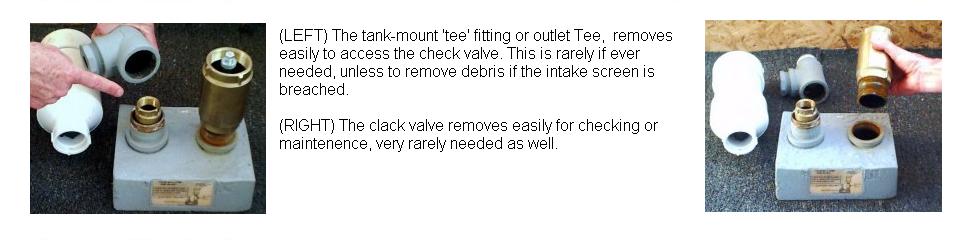

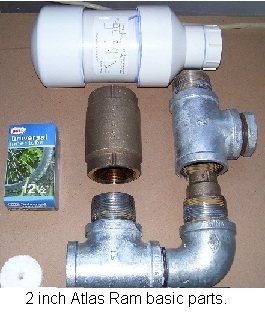

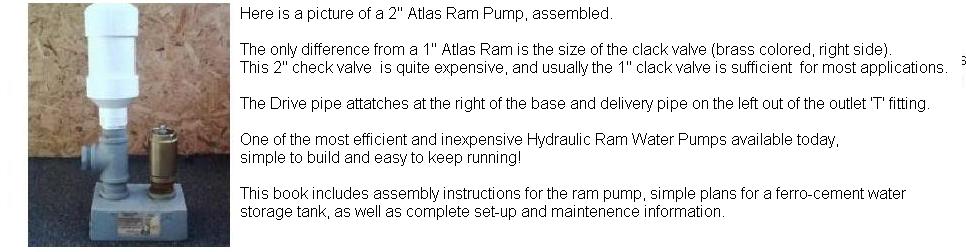

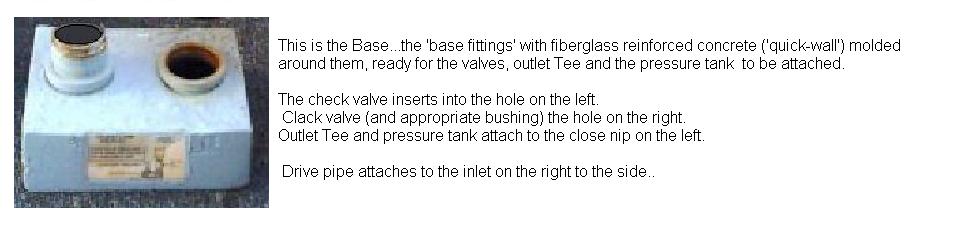

ABOUT THE ATLAS RAM PUMP
ABOUT THE NEW E-BOOK

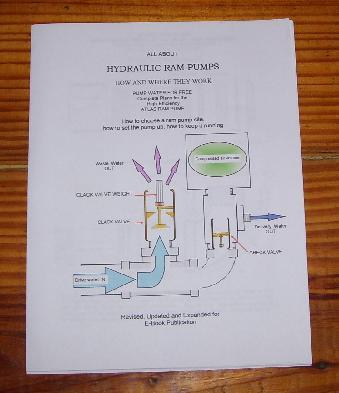

30 pages with illustrations and color photos.
This E-book explains in simple terms and with illustrations and color photos how and where the ram pump
works, how it can be set up, and how to keep it working year after year with a minimum
of time and energy.
The second section of the book gives step-by-step plans for building a fully
operational Atlas Ram Pump from readily available plumbing fittings, with NO welding, drilling,
tapping or special tools needed. The design has evolved to a point where low maintenence and
long term reliable service is almost certain, even by a novice.
The final chapter shows how to
set up and maintain an Atlas Ram Pump water system.
Also included is the authors personal e-mail for any questions...
FROM THE AUTHOR & PUBLISHER...
Years ago, when I moved to a remote cabin in The Smokies, there was no electricity available.
There was a spring nearby, to get water from, but it had to be carried to the cabin. I knew
this had to change, so I began to research some alternatives. Eventually I found some info
about 'ram pumps' which looked promising.
That was many years ago and the ram I built then has gone through many changes.
Feeling that there must be others with similar needs (there are!) I began to compile and draw
and write. The book 'The Original! HYDRAULIC RAM PUMPS How and Where They Work' was the result.
It contained plans for a design that has evolved through trial and error.
This new issue as an E-book is a complete rewrite, with lots of color and photos not possible with the print book,
as well as wealth of new info.
The Atlas Ram is now simpler and cheaper to build, more reliable and efficient than ever.
Any new developments and user experiences are added to each reprint of the book.
It just keeps getting better! In fact, there is a person in WA who once copied the print book and
sold it as his own. That's alright, I hear imitation is the sincerest form of flattery.
Too bad he can't answer your questions--He's off the net now...Meanwhile I DO answer
questions as best I can--my personal e-mail is inside the book.
A great resource for self-reliant types, homesteaders, hobbyists,
alternative energy users or anyone curious about this 'old-tech' device that has been
around for so long and works so well.
Read below what some people have said about the print book...

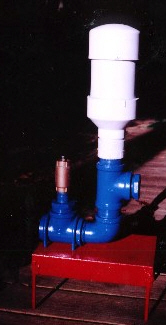

"Don, This is a picture of the ram I made from your book.
